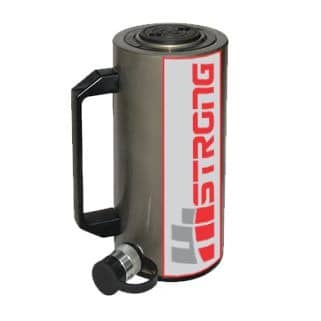

SSA-Series

CAPACITY: 20 – 100 Ton
STROKE: 50 – 250 mm
Spring Return, Single Acting
MAX. WORKING PRESSURE: 700 bar/ 10,000 psi

Features

  • Half weight of the steel cylinders.
  • Heavy duty spring for fast & full retraction.
  • Large saddle surface for side load protection.
  • Carrying handles are equipped for all models.

  • Hard-Anodized coating reduces wear & corrosion.
  • Rod wiper protects inner rod from dirt.
  • Stop rings for piston blow-out protection.

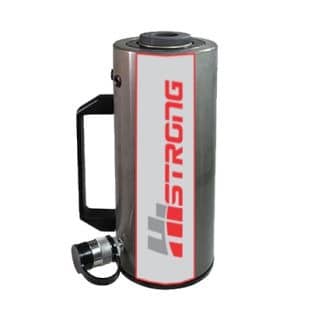

ACHC- Series

CAPACITY: 20 – 60 Ton
STROKE: 50 – 150 mm
Spring Return, Hollow Type
MAX. WORKING PRESSURE: 700 bar/ 10,000 psi

Features

  • Half weight of the steel cylinders.
  • Heavy duty spring for fast & full retraction.
  • Chrome plated center hole for extra protection.
  • Carrying handles are equipped with all models.

  • Hard-Anodized coating reduces wear & corrosion.
  • Stop rings for piston blow-out protection.
  • Rod wiper protects inner rod from dirt.

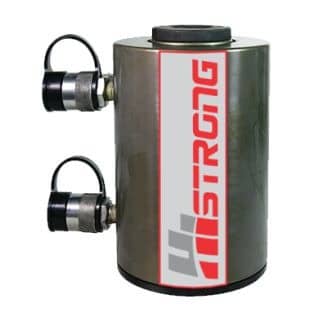

ADHC- Series

CAPACITY: 30 & 60 Tons
STROKE: 50 – 250 mm
Hollow, Double Acting
MAX. WORKING PRESSURE: 700 bar/ 10,000 psi

Features

  • Half weight of the steel cylinders.
  • Steel piston regarding protection against load damage.
  • Chrome plated center sleeve for extra protection.
  • Chrome plated center sleeve for extra protection.

  • Carrying handles are equipped with all models.
  • Hard-Anodized coating reduces wear & corrosion.
  • Stop rings for piston blow-out protection.
  • Rod wiper protects inner rod from dirt.

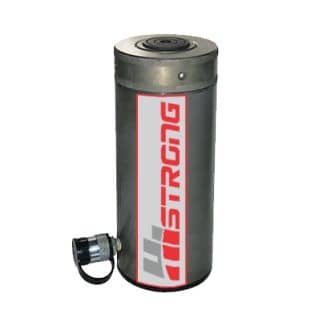

ALNC- Series

CAPACITY: 20 – 100 Ton
STROKE: 50 – 250 mm
Spring Return, Lock Nut Type
MAX. WORKING PRESSURE: 700 bar/ 10,000 psi

Features

  • Half weight of the steel cylinders.
  • Locknut extend load holding period safely.
  • Large saddle surface for side load protection.
  • Carrying handles are equipped with all models.

  • Hard-Anodized coating reduces wear & corrosion.
  • Stop rings for piston blow-out protection.
  • Heavy duty spring for fast and full retraction
