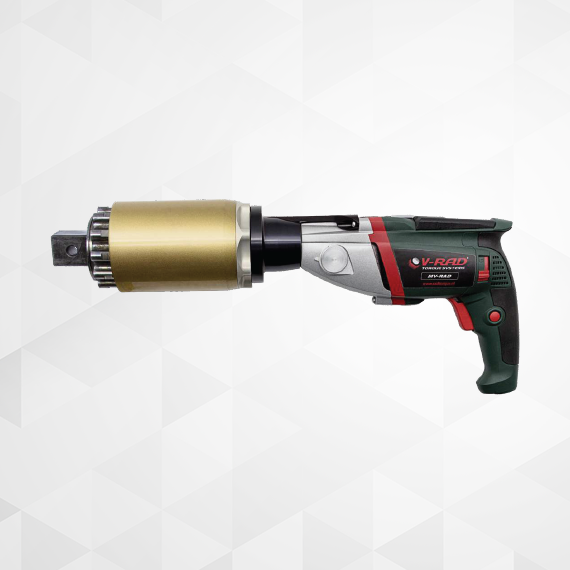

corded-torque-wrench-digital-mv-rad-electric

The MV-RAD offers rapid, precise, and reliable tightening or loosening of bolts. Its torque settings can be adjusted incrementally by 1 Nm using a membrane key control, without predefined steps. Customizable parameters beyond torque can be programmed to suit specific applications. Additionally, this torque wrench incorporates an angle function for enhanced control.

SPECIFICATIONS


Maximum Torque (Nm) / (ft-lbs)                11000 / 8,113
Minimum Torque (Nm) / (ft-lbs)                 65 / 48
Maximum Weight (kg) / (lbs)                      3.9 / 8.6
Minimum Weight (kg) / (lbs)                       13.6 / 30


PRODUCT CATALOGUE

ABS Corded Electric Torque Wrench - MV-RAD Select



Prod.no.

Model

Square drive

Torque range

RPM

Weight

Dim. L

Dim. D

Dim. W

Dim. H

πŸ ‹ 200278

MV-RAD 6

¾"

65 - 650 Nm

38,0

3,9 Kg

390 mm

64 mm

74 mm

203 mm

πŸ ‹ 200279

MV-RAD 14

¾"

140 - 1.400 Nm

8,8

3,8 Kg

305 mm

69 mm

74 mm

203 mm

πŸ ‹ 200289

MV-RAD 14-90°

¾"

140 - 1.400 Nm

13,0

5,3 Kg

176 mm

69 mm

74 mm

390 mm

πŸ ‹ 200277

MV-RAD 20

1"

200 - 2.000 Nm

5,7

4,0 Kg

311 mm

69 mm

74 mm

203 mm

πŸ ‹ 200282

MV-RAD 34-90°

1"

340 - 3.400 Nm

5,5

7,5 Kg

224 mm

77 mm

77 mm

400 mm

πŸ ‹ 200469

MV-RAD 40

1"

600 - 4.000 Nm

2,7

6,2 Kg

343 mm

79 mm

79 mm

203 mm

πŸ ‹ 200284

MV-RAD 45

1½"

450 - 4.500 Nm

2,0

8,8 Kg

495 mm

86 mm

86 mm

221 mm

πŸ ‹ 200345

MV-RAD 45-90°

1½"

450 - 4.500 Nm

3,0

9,5 Kg

252 mm

86 mm

86 mm

404 mm

πŸ ‹ 200287

MV-RAD 70

1½″

700 - 7.000 Nm

1,5

9,5 Kg

429 mm

95 mm

95 mm

226 mm

πŸ ‹ 200325

MV-RAD 70-90°

1½″

1.400 - 7.000 Nm

1,0

10,4 Kg

245 mm

95 mm

95 mm

409 mm

πŸ ‹ 200286

MV-RAD 80

1½″

1.200 - 8.000 Nm

1,5

11,3 Kg

492 mm

101 mm

101 mm

229 mm

πŸ ‹ 200395

MV-RAD 110

1½″

2.100 - 11.000

1,0

13,1 Kg

510 mm

108 mm

108 mm

232 mm

πŸ ‹ 200466

MV-RAD 110-90°

1½″

2.100 - 11.000

1,2

13,6 Kg

269 mm

108 mm

108 mm

415 mm

MV-RAD SELECT Electric Torque Wrench Tool Features:

The MV-RAD optionally includes a Bolt Check feature. This function verifies if a previously tightened bolt remains within torque specifications without applying additional torque. If adjustments are needed, the tool automatically tightens the bolt to the correct torque and indicates the required rotation. This feature is particularly effective when paired with the Smart socket™.

Operating on 230V or 115V power, the MV-RAD is versatile and operates at a quiet 80 dB. Each wrench comes fully calibrated in a storage case, including a reaction arm, calibration certificate, and user manual.

Compact and lightweight, the MV-RAD automatically stops when the preset torque is reached and the torque arm is released. Its pistol grip houses a membrane keypad and OLED display. The handle rotates 360 degrees for optimal user comfort.

Key features include torque settings in Nm increments, an angle function, and optional Bolt Check. The tool delivers precise and repeatable torque control within ±3%.



Enquire Now



People Also Ask

Electric torque wrenches are highly accurate, with most models offering a precision level of Β±2-5% of the set torque value. Advanced digital models often include feedback systems for real-time accuracy and can log data for quality control. Regular calibration is essential to maintain this level of precision over time.

A torque gun is a power tool designed to apply specific torque to fasteners. Here's how it operates- Power Source- The gun is powered electrically, pneumatically, or hydraulically to drive a motor. Torque Control- Users set the desired torque value on the tool or an external controller. Operation- The motor drives a gear mechanism to apply torque to the fastener. Torque Limitation- When the preset torque is reached, the tool stops automatically or disengages the drive to prevent over-tightening. Torque guns are widely used in industries requiring high levels of accuracy and repeatability, such as automotive, construction, and energy.

An electric torque wrench works as follows- Motor Activation- A motor generates the force needed to tighten or loosen fasteners. Torque Setting- The user sets the desired torque value on the tool’s digital or manual interface. Torque Application- The wrench applies torque through its drive mechanism until the preset value is reached. Feedback- The tool provides visual or audible signals (e.g., lights or beeps) to indicate that the desired torque has been applied. Electric torque wrenches often include features like data logging, torque-angle measurement, and Bluetooth connectivity, making them suitable for precision-driven applications.

Set the Torque Correctly- Always adjust the torque wrench to match the required specifications for the task. Use the Tool Properly- Apply torque in a smooth, steady motion, and never use the wrench for purposes other than tightening to the set torque. Calibrate Regularly- Ensure the wrench is calibrated at least once a year or after heavy use to maintain accuracy and reliability.
