Hydraulic Torquing Pump

Torquing pumps, also referred to as hydraulic torque wrench pumps, are specifically designed to simplify the process of tightening or loosening bolts, nuts, and other fasteners. These pumps apply torque with precision and generate the necessary hydraulic pressure, serving as an integral component of torque wrench systems. We offers a range of nine distinct models that can be selected according to specific requirements.

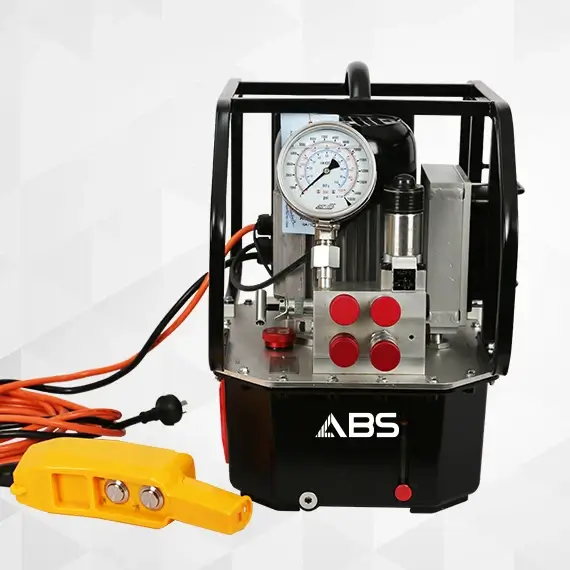

These pumps can be powered either pneumatically or electrically. The advanced, high-pressure hydraulic torque wrench pumps are capable of simultaneously powering up to four tools. Torquing pumps are widely used in industries where precise torque application plays a crucial role, including automotive, construction, manufacturing, and more. These feature-rich pumps come equipped with a multi-tool manifold, an LCD display pendant, data recording functionality, single-operation capability, torque completion alerts, and various other attributes.





MODEL

POWER

WEIGHT

PRESSURE

COOLER

OPERATION

HY-V230-FA4-DOC

230V-2PH/50HZ

36 Kg

10000 PSI

INTEGRAL

4 TOOLS



HY-V230-FA1-DOC-TA

115V: 1Ph 90-125 / 60Hz

230V: 1Ph 200-230V / 50+60Hz

400V: 3Ph 400-460



36 Kg



10000 PSI



INTEGRAL



1 TOOL

HYSTREAM 230 (HY-230)

230V-1PH/50HZ

25 Kg

10000 PSI

INTEGRAL

4 TOOLS

HYSTREAM AIR (HY-AIR)

100 PSI AIR

21 Kg

10000 PSI

NA

4 TOOLS

HY230-2-FA4

230V-1PH50HZ

27 Kg

10000 PSI

INTEGRAL

4 TOOLS

HY-EX-230-50HZ

230V-1PH/50HZ

51 Kg

10000 PSI

INTEGRAL

4 TOOLS

JET STREAM 230-W-HS-TA-DOC

230V-1PH50HZ

36 Kg

10000 PSI

INTEGRAL

1 TOOL

BIG JET 18.3

400V-3PH50HZ

29 Kg

10000 PSI

INTEGRAL

4 TOOLS

HY-230 ECONO

230V-1PH/50HZ

26 Kg

10000 PSI

INTEGRAL

1 TOOL

Enquire Now



People Also Ask

The HY-Twin 230 pump is a robust 4-stage pump equipped with dual motors, providing exceptional power. It delivers twice the speed and oil flow compared to other systems, making it ideal for extensive hydraulic setups or multi-tool applications. With built-in casters for enhanced mobility and a five-gallon reservoir, it supports multiple substantial tools simultaneously.

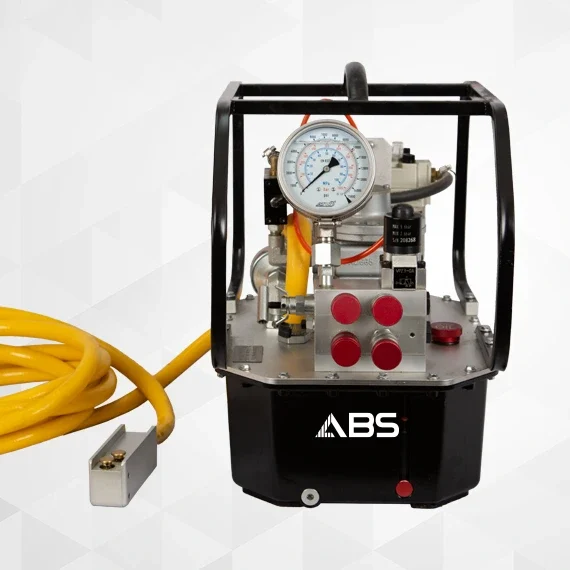

The HY-AIR is a 4-stage pump designed to expedite cycle times and enhance overall productivity. With a streamlined design, one or two-gallon reservoir options, and straightforward controls, it offers enhanced mobility and swift setup procedures. The semi-automatic functionality ensures a quicker and more seamless bolting experience, making it a valuable tool for various applications.

The HY-115 electric power pack from HYTORC offers a blend of dependability, efficiency, and cost-effectiveness. Operating at a quiet ~80 dB, it ensures a peaceful work environment. Equipped with an Oil Cooler to prevent overheating, uncomplicated controls streamline setup, and the option for an upgradeable semi-automatic feature enhances operational efficiency.

The HYTORC HY-EX 3-Stage Electric Pumps are licensed under EU-Directive 2014/34/EU (Atex 100a), class: 2014/34/EU, ensuring compliance with stringent safety standards. The pumps come with a precision-calibrated gauge and certificate, along with a remote control spanning 15 feet (5 meters). Optional 4-tool adapters enhance versatility.

The JetPro S-Air is an economically viable air-driven hydraulic power pack designed for hazardous environments. It offers top-tier dependability with a lightweight structure, a one-gallon reservoir for portability, and a user-friendly one-button control system. As part of an ATEX-approved bolting package, it ensures enhanced speed and efficiency in hazardous field operations.

The VECTOR MINI Pump is developed upon the VECTOR pump technology, demonstrating a remarkable reduction in size and weight by 25% and 35%, respectively. It offers exceptional maneuverability and portability. The pump comes in two variations: manual and fully automatic, with an optional documentation feature for comprehensive data recording.

The VECTOR TORQUE & ANGLE module enhances the versatility of the hydraulic power system with its 4-stage high-flow configuration and gauge-free operation. Operators can designate the HYTORC tool and set the desired angle remotely, ensuring precise Turn-of-Nut tightening without human errors. The documentation feature captures comprehensive job data, further boosting its utility.

The VECTOR Pump stands out as the swiftest fully automatic Hydraulic Power System due to its advanced 4-stage high-speed flow motor. Free from the need for gauges, operators can designate their HYTORC tool and set the desired torque remotely. The introduction of LCD pendant control and automated regulation provides a fully upgradeable and exceptionally intuitive experience. The manual pumps can be upgraded to fully automatic as needed.

The Remote Control Pendant for the hydraulic power systems features two push buttons with a 24 V DC supply. It includes a visual oil level gauge, safety interlock to switch off the power pack automatically after 60 seconds of idle time, and a temperature interlock that switches off the power pack if the hydraulic oil temperature rises above 80°C.

A torquing pump serves the purpose of providing hydraulic pressure to hydraulic torque wrenches, enabling controlled and precise tightening of bolts.

The torque requirement for a pump is not applicable. Instead, pumps are designed to generate hydraulic pressure to operate torque wrenches efficiently.

Torque calculation is not relevant for torquing pumps. The focus is on generating hydraulic pressure, measured in pounds per square inch (psi), to drive torque wrenches.

The working principle involves the conversion of mechanical energy into hydraulic pressure, creating a force that is then transmitted to the hydraulic torque wrench, allowing controlled tightening.
