Tensioning Pumps

HHSL Hydraulic Link Hoses utilise a high strength multi-spiral reinforced polymer construction for high safety factors and abrasion resistance, but with a small bend radius for easier connection. Suitable for use with all TensionPro hydraulic tensioners, nuts, and pumps.

Features

• CE marked
• Pressure tested before despatch
• Supplied with pressure test certification
• Hoses tagged with individual serial numbers

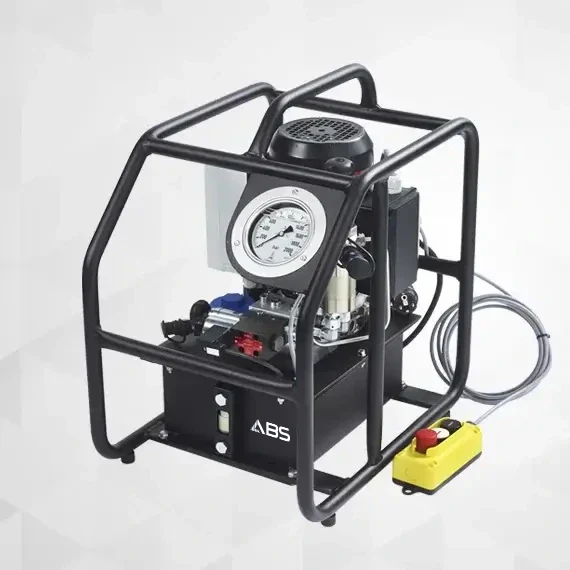

The TensionPro Electro Max electric-powered hydraulic pumps stand as robust and versatile units, well-suited for a wide array of bolt tensioning applications. These pumps harmonize seamlessly with the duo wind turbine range of TensionPro bolt tensioning tools. Engineered for steadfast performance, the pump is optimized to reliably operate under challenging environmental conditions and withstand rough handling often encountered in workshops, as well as other mobile and industrial settings. Incorporating a compact design, the pump is driven by a high-specification motor that ensures low weight and minimal noise during operation.

Features

• 1500 and 2500 bar options
• Dual scale psi/bar 100mm gauge
• Single scale MPa gauge option
• Fitted with Quick Connector outlet
• <70 dBa quiet operation
• 5L tank with level glass
• Safety pressure release valve
• Pressure setting valve
• Full pendant control

TensionPro Electro Mobile electric-powered hydraulic pumps represent portable pump units that are exceptionally versatile, designed for a diverse range of high-pressure operations. Despite their lightweight and compact design, they possess ample power to effectively cater to a multitude of tensioning applications. Characterized by self-containment, these pumps feature comprehensive pendant control. They integrate calibrated gauges and are equipped with a safety pressure release valve, along with a pressure setting valve, affording precise control over operations.

Features

• 1500 and 2500 bar options
• Dual scale psi/bar 100mm gauge
• Single scale MPa gauge option
• Fitted with Quick Connector outlet
• Wheeled flight case
• Retractable handle
• <70 dBa quiet operation
• Safety pressure release valve
• Pressure setting valve

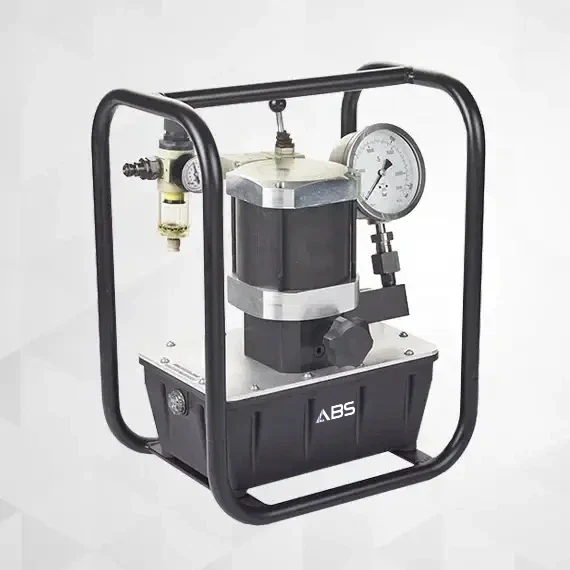

The standard choice, Model PAMI-1500, is specifically calibrated for 1500 bar hydraulic tensioners. The PAMI Air-powered hydraulic pump is engineered as a lightweight, high-performance air power pack, meticulously designed for pressurizing either a single tensioner or smaller sets of tools. It provides an optimal solution that bridges the gap between hand pumps and standard PAXX air pumps by offering the necessary pressure without the excess flow rate. Featuring a 2.4 L tank and a nearly 0.1 L/min flow rate at maximum pressure, this pump proves suitable for a wide array of tensioner applications. Weighing only 15 kg and boasting a compact size, it's effortlessly portable and perfectly suited for applications with limited space constraints.

Features

• 1500 bar max pressure
• 5-8 bar air pressure
• 500 l/min min air flow
• Powder coated steel frame
• Dual scale pressure gauge
• Quick connect coupling outlet
• Air silencer included
• Air pressure gauge and regulator

PAXX Air-powered hydraulic pumps are meticulously engineered to excel in the precise task of pressurizing hydraulic bolt tensioners. They also exhibit compatibility with a wide range of high-pressure hydraulic systems, including hydraulic jacks, pressure systems, and hydrotesting applications. Our comprehensive lineup encompasses varying pressure ratings. Furthermore, we offer high-flow alternatives to cater to scenarios with multiple tools in simultaneous operation. Should you require assistance in choosing the right option, please feel free to reach out to our sales team. The PASF-1500 model serves as the standard choice, calibrated specifically for 1500 bar hydraulic tensioners.

Features

• 420 x 420 x 390 mm compact size
• Stainless steel frame
• Dual scale pressure gauge
• Air silence included = 85 dBA max
• 4.5L tank
• ISO 10,32,46 oil compatible

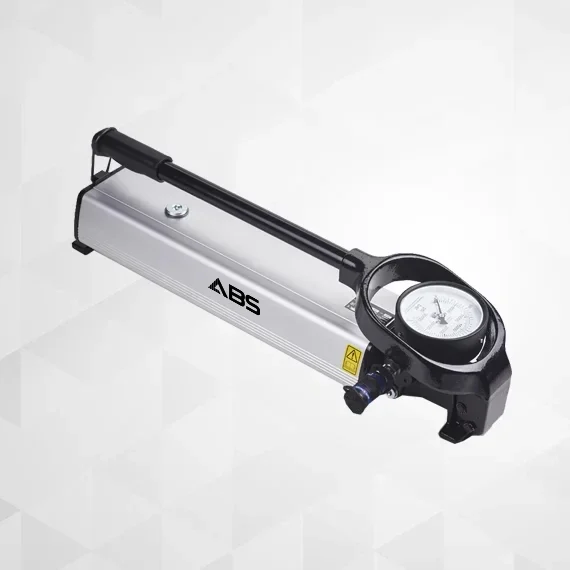

The TensionPro two-stage hydraulic hand pumps are furnished with an included pressure gauge, ensuring precise pressure management for users. The gauge is seamlessly affixed to the pump and safeguarded by a purpose-designed pump lever. The dual-stage operation streamlines pump usage, enabling swift and effortless attainment of working pressure for the associated tensioner or equipment. Their sturdy construction guarantees reliable performance even amidst rough handling and challenging operational scenarios. Distinguished by their durability, these pumps are excellently adapted to withstand demanding conditions present in rugged environments such as workshops, as well as other mobile and industrial settings.

Features

• Light and strong aluminium tank
• 700, 1000, 1500 and 2500 bar options
• Dual scale psi/bar 100mm gauge
• Single scale MPa gauge option
• Fitted with Quick Connector outlet
• Mounting holes for fixed installations
• Pressure tested and certified
