HexForce Multi Stage Tensioners

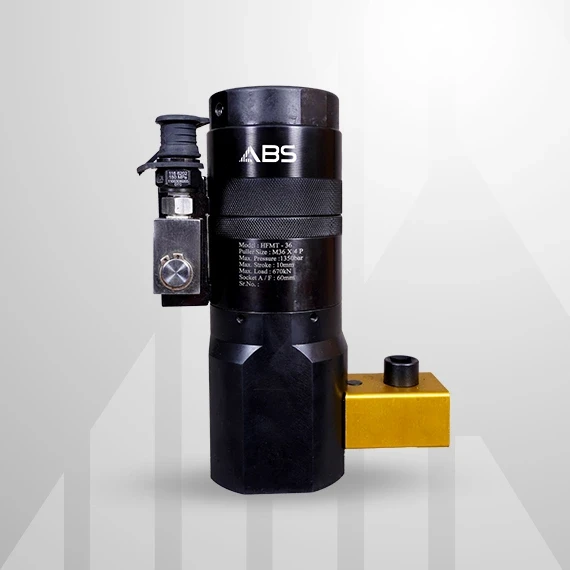

HexForce Multi-Stage Bolt Tensioner

The HexForse multi-stage bolt tensioners offer versatility and dependability, serving as hydraulic bolt tensioners well-matched for demanding high-load and confined-space applications. Tailored for utilisation on wind turbines, this multi-stage hydraulic bolt tensioner is crafted to endure extended usage while requiring minimal maintenance.

SPECIFICATIONS


Maximum Tensioner Load (kN) / (TONF)                 2253 / 225.3
Minimum Tensioner Load (kN) / (TONF)                  29029.1
Bolt Thread Size (inch) / (metric)                             1 - 2 1/2 / M24 - M64
Tool Height (mm)                                                       182 - 370.5


PRODUCT CATALOGUE


 ABS Multi-Stage Tensioner



BOLT THREAD SIZE
'T'
MAX TENSIONER LOAD
'F'
TOOL HEIGHT
'H'
TOOL OD
'A'
IN MM TONF KN MM MM
1 M24 29.1 290 182 60
1 1/8 M27 38.1 380 192 66
- M30 46.8 466 201 73
1 1/4 M33 57.2 570 217 79
1 3/8 M36 68 678 247 84.5
1 1/2 M39 81.3 810 260 92
1 5/8 M42 93.3 928 270.5 98
1 3/4 M45 108.8 1084 289 105
1 7/8 M48 122.7 1223 311 111
2 M52 146 1455 320 129
2 1/4 M56 168.1 1675 325 130
- M60 195.7 1950 345 140
2 1/2 M 64 225.3 2253 370.5 150

Multi-Stage Bolt Tensioners


Conquering High Loads and Tight Spaces: The Power of duo Series Tensioners

Meet the duo Series, your versatile and dependable partner in high-load, tight-space bolting scenarios. Specifically designed for wind turbine excellence, these hydraulic tensioners deliver long-life performance and minimal maintenance, tackling single bolts or efficiently tightening multiple joints in critical applications like slewing rings, power generation, and structural work.

Process Optimization: Speed and Efficiency on Your Side

Time is precious. The duo Series prioritizes speed with features like:

  • Fast Spring Piston Retract: Save time between tensioning cycles.
  • Geared Nut Run-Down: Achieve rapid initial thread engagement.
  • Spring-Located Sockets: Simplify setup and reduce operator fatigue.

High cycle life, over-stroke protection, and cutting-edge seal technology further enhance efficiency by minimizing downtime and keeping projects on track.

Safety and Speed in Perfect Harmony:

Operator safety is paramount. The optional TWIST-GRIP handle, integrated with the hydraulic connection, offers:

  • Easy Handling and Positioning: Maneuver the tensioner effortlessly in cramped spaces.
  • Hose and Connection Protection: Minimize safety risks and potential damage.

So, you can enjoy both speed and peace of mind with every tensioning operation.

Tailored Solutions for Your Precise Needs:

No task is identical. The duo Series adapts to your unique requirements with a range of options, including:

  • Special Threads and Load Configurations: Cater to specific bolting situations.
  • Twin or Single Port Options: Choose the ideal hydraulic setup for your workflow.
  • Protective Handle: Enhance safety and operator comfort.
  • Tight Clearance Bridge: Overcome limited space challenges with a dedicated design.
  • Swivel Connections: Increase reach and maneuverability.
  • Cycle Counter: Track tensioning cycles for proactive maintenance.
  • Gear Drive Nut Run-Down: Expedite initial thread engagement.
  • Spring Piston Return: Simplify tool retraction and reduce operator fatigue.
  • Misalignment Compensation: Ensure proper tensioning even with slight bolt misalignment.
  • ARMOURMAX Anti-Corrosion and Anti-Wear Technology: Extend operational life and minimize wear.


Embrace Cutting-Edge Technology for Safety and Reliability:

The duo Series incorporates the latest advancements for optimal performance:

  • Advanced Seal Technology: Minimize leaks and maximize uptime.
  • High Cycle Life: Expect extended operational lifespan.
  • Optimized Load-to-Weight Ratio: Enjoy enhanced portability and maneuverability.
  • Seamless Integration: Works flawlessly with TensionPro pumps and hoses.


CE Marked for Safety, Built for Trust:

Your safety is our priority. The duo Series is CE marked for compliance with stringent European standards, and features like:

  • Over-Stroke Protection: Safeguards against exceeding stroke limits.
  • Max Stroke Indicator: Provides clear visual reference for stroke position.
  • Pressure Test Certification: Guarantees equipment integrity through rigorous testing.
  • Comprehensive Manuals: Get clear instructions and safety guidelines.

More than just powerful and efficient, the duo Series Multi-Stage Hydraulic Bolt Tensioner represents a commitment to safety, reliability, and cutting-edge technology. Take on the toughest bolting challenges with confidence, knowing you have the perfect partner by your side.

Applications

Applications Utilizing Compact Design and High Pre-Load:

Wind turbine blade bearing bolts: Tightening large-diameter bolts on wind turbine blades requires significant pre-load for optimal performance and safety. Multistage tensioners provide the necessary force in a compact design, ideal for accessing confined spaces within the nacelle.

Heavy machinery assembly: In construction equipment, mining vehicles, and other heavy machinery, high-pre-load connections are crucial for structural integrity and component reliability. Multistage tensioners deliver the required force within tight working areas.

Pipelines and pressure vessels: Flange connections in high-pressure pipelines and vessels sometimes require pre-load beyond the capacity of single-stage tensioners. Multistage models provide the necessary force without excessive tool size or cumbersome equipment.

Nuclear power plants: Maintaining secure bolted connections in critical components within nuclear power plants demands precise pre-load and compact tools for access. Multistage tensioners cater to these needs with their high-force capabilities and maneuverability.


Advantages of Multistage Tensioners:

Greater pre-load capacity: They can achieve significantly higher pre-load compared to single-stage tensioners, making them suitable for demanding applications.

Compact design: Their unique multi-stage configuration provides high force within a smaller footprint, ideal for confined spaces or limited access areas.

Controlled application: They offer precise control over pre-load, ensuring accurate and consistent tensioning even on large-diameter bolts.

Versatility: They can be used with various bolt sizes and configurations, making them suitable for diverse applications.

Improved safety: The controlled and accurate pre-load application minimizes the risk of bolt over-tightening and potential failures.


Considerations for Multistage Tensioners:

Complexity: Compared to single-stage models, they may require more specialized training and maintenance due to their intricate mechanisms.

Cost: Their higher pre-load capabilities and advanced features generally lead to a higher price point compared to simpler tensioners.

Space requirements: While more compact than some single-stage models, they may still require additional space for setup and operation compared to manual tools.

After the sale, we are delighted to assist you with any technical concerns or inquiries. Don't hesitate—let's connect! Feel free to reach out to us via phone: 828282-9795 or drop us an email at [email protected]. We're here to help and ensure your satisfaction.
