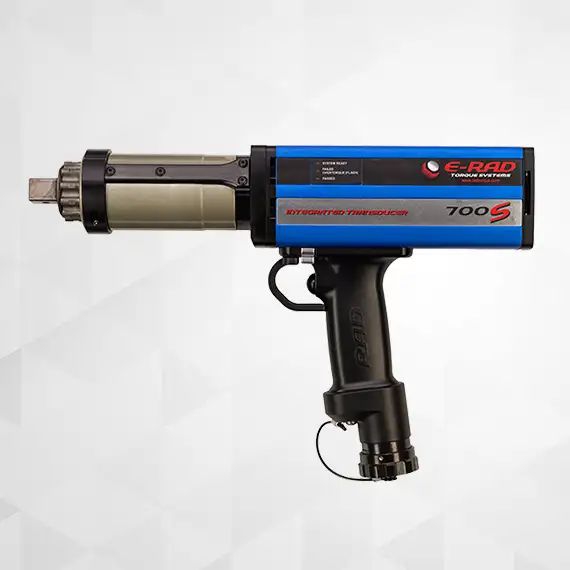

Electric Torque Wrench - E-RAD BLU S

Inquire Now
best-electric-torque-wrench

Electric Torque Wrench

Introducing the latest member of the E-RAD BLU line, this addition offers unparalleled accuracy and introduces features like operator identification and password protection. The series includes five models, providing torque capabilities ranging from 100 to 11,000 ft/lbs (135-15,000 Nm) at speeds from 5 to 15 RPM. This advanced E-RAD BLU variant enhances accuracy and security, allowing operators to monitor torque levels, ensuring that only qualified personnel can use the tool, and providing immediate notifications for accurate torque outcomes.

Now available: Electric Torque Wrench Rental Services for precision bolting

E-RAD BLU-S Electric Torque Wrench Specifications

Maximum Torque (Nm) / (ft-lbs)                15000 / 11000
Minimum Torque (Nm) / (ft-lbs)                 135 / 100
Maximum Weight (kg) / (lbs)                      20 / 44
Minimum Weight (kg) / (lbs)                       5.9 / 13

PRODUCT CATALOGUE

 ABS Cordless Electric Torque Wrench - E-RAD BLU S



Metric

TOOL MODEL TORQUE RANGE RPM

E-RAD BLU 950

135-950 Nm

15

E-RAD BLU 3400 COMP

340-3400 Nm

5

E-RAD BLU 4000

675-4000 Nm

5

E-RAD BLU 8000

1385-8100 Nm

2.1

E-RAD BLU 10K

2000-10000 Nm

1.5

*E-RAD BLU 15K

4050-15000 Nm

1.5

Imperial

TOOL MODEL TORQUE RANGE RPM

E-RAD BLU 700-S

100-700 ft/lbs.

15

E-RAD BLU 2500-S COMP

250-2500 ft/lbs.

5

E-RAD BLU 3000-S

500-3000 ft/lbs.

5

E-RAD BLU 6000-S

1000-6000 ft/lbs.

2.1

E-RAD BLU 7500-S

1500-8000 ft/lbs.

1.5

*E-RAD BLU 11K-S

3000-11000 ft/lbs.

1.5



E-RAD BLU-S Electric Torque Wrench

- Integrated transducer for built-in accuracy
- Advanced data logging and tool management features
- Password protection with three user levels: basic, intermediate, and advanced
- Operator identification for traceability of each torque sequence
- Capable of torque and angle bolting sequences
- LED indicator lights for pass/fail assessment, ensuring maximum accuracy
- Controlled bolting repeatability with +/- 2% accuracy of transducer and +/- 1%
- Extremely low noise level at only 75dB
- Torque Range: 100-11,000 ft/lbs (135-15,000 Nm)

E-RAD BLU-S Electronic Torque Wrench Tool Features:

- Built-in transducer for enhanced accuracy
- Advanced data logging and tool management features
- Password protection with three user levels: basic, intermediate, and advanced
- Operator identification for traceability of each torque sequence
- Capable of torque and angle bolting sequences
- LED indicator lights for pass/fail assessment, ensuring maximum accuracy
- Controlled bolting repeatability with +/- 2% accuracy of transducer and +/- 1%
- Extremely low noise level at only 75dB
- Torque Range: 100-11,000 ft/lbs (135-15,000 Nm)

Electronic Torque Wrench with Built-in Transducer for Increased Accuracy:

Introducing the latest addition to RAD’s E-RAD BLU line – the E-RAD BLU-S. This electronic torque wrench features a built-in transducer, providing unparalleled accuracy. Operator identification ensures traceability, and pass/fail indicators, along with password protection, contribute to controlled and precise torquing.

Specifications:
- Torque Ranges: 100 – 11,000 ft/lbs (135 – 15,000 Nm)
- Data collection capability
- LED indicator lights for pass/fail assessment
- Push-button torque selection
- Lightweight and ergonomic pistol grip
- Precision tool with +/- 3% accuracy

After the sale, we are delighted to assist you with any technical concerns or inquiries. Don't hesitate—let's connect! Feel free to reach out to us via phone: 828282-9795 or drop us an email at marketing@absgroup.in We're here to help and ensure your satisfaction.

Enquire Now



People Also Ask

- The torque of a corded electric torque wrench varies by model, but it can generate significant torque ranging from a few hundred to over a thousand foot-pounds.

- A corded electric torque wrench, or impact wrench, is used for fastening and loosening nuts and bolts efficiently.

It finds applications in automotive repair, construction, and various industrial tasks.

- Electric torque wrenches are known for their accuracy, typically within ±5% tolerance. Regular calibration is essential to maintain precision.

- Generally, corded electric torque wrenches can provide higher torque output compared to cordless models. Corded versions are often preferred for heavy-duty applications requiring maximum torque.

Set the Correct Torque- Always adjust the wrench to the specific torque required for the task. Apply Steady Pressure- Use consistent, smooth force to tighten bolts or fasteners. Avoid Over-Tightening- Do not exceed the tool’s maximum capacity to prevent damage or inaccurate readings. Store Properly- Reset the wrench to its lowest setting after use to maintain the internal spring's longevity. Calibrate Regularly- Ensure the tool is calibrated annually or after extensive use to maintain accuracy.

An electric torque wrench uses a motor to generate and apply precise torque to fasteners. Here's the process- Motor Function- The motor powers a gear mechanism that delivers the required torque. Programming- Users input the desired torque value into the tool via a digital interface. Torque Application- The wrench applies the preset torque, automatically stopping once the value is achieved. Feedback and Logging- Many models provide visual or audible feedback and may log torque data for verification and traceability.

The maximum range of a torque wrench varies by type- Click-Type Torque Wrenches- Typically range from 2 to 1,000 Nm (Newton-meters). Electric Torque Wrenches- Often range from 10 to 10,000 Nm, depending on the model and manufacturer. Hydraulic Torque Wrenches- Can exceed 70,000 Nm for heavy industrial applications. Choose a wrench with a range that matches your specific application needs to ensure accuracy and efficiency.
