electro-mobile-electric-tensioning-pump

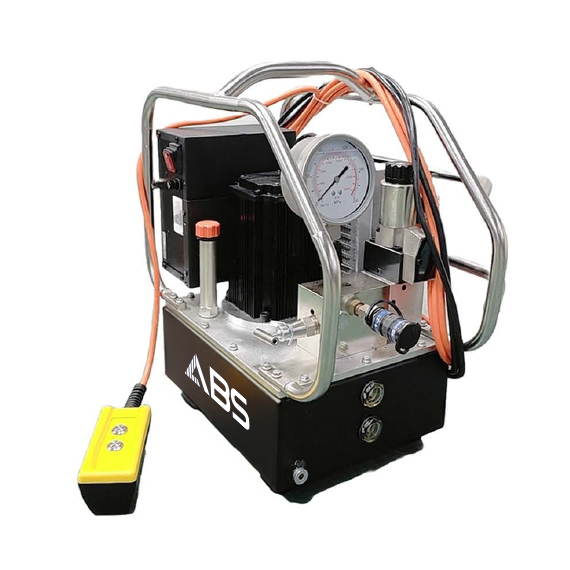

Hydraulic Bolt Tensioning Pump

TensionPro Electro Mobile electric-powered hydraulic pumps represent portable pump units that are exceptionally versatile, designed for a diverse range of high-pressure operations. Despite their lightweight and compact design, they possess ample power to effectively cater to a multitude of tensioning applications. Characterized by self-containment, these pumps feature comprehensive pendant control. They integrate calibrated gauges and are equipped with a safety pressure release valve, along with a pressure setting valve, affording precise control over operations.

Features

  • 1500 and 2500 bar options
  • Dual scale psi/bar 100mm gauge
  • Single scale MPa gauge option
  • Fitted with Quick Connector outlet
  • Wheeled flight case
  • Retractable handle
  • <70 dBa quiet operation
  • Safety pressure release valve
  • Pressure setting valve
Part Number Max Pressure Electric Supply Dry weight Motor Power Size
bar psi voltage frequency kg W I x w x h mm
PEMO-1500-01-230 1500  21,750 220-240 50/60 30 0.55/0.66 247x347x546
PEMO-1500-01-120 1500  21,750 100-120 50/60 30 0.55/0.66 247x347x546
PEMO-1500-01-230 1500 36,250 220-240 50/60 30 0.55/0.66 247x347x546
PEMO-1500-01-120 1500 36,250 100-120 50/60 30 0.55/0.66 247x347x546



Enquire Now



People Also Ask

The common maximum pressure for a hydraulic tensioning pump can range from 700 to 10,000 psi, providing the necessary hydraulic force for tensioning applications.

Hydraulic pumps in tensioning applications typically run intermittently, engaging when tensioning is required and disengaging when the desired tension is achieved. This controlled operation conserves energy and enhances pump longevity.

Hydraulic tensioning focuses on applying tension to bolts, ensuring even and controlled clamping force. Torquing, on the other hand, involves tightening bolts by applying rotational force. Tensioning is preferred for critical joints requiring precise and uniform force distribution.

Hydraulic tensioning is a method of tightening bolts by using hydraulic force to stretch the bolt, ensuring even and controlled tension. It is crucial for applications where precise and uniform clamping force is essential.
