pneumatic-torque-wrench-rad-high-speed

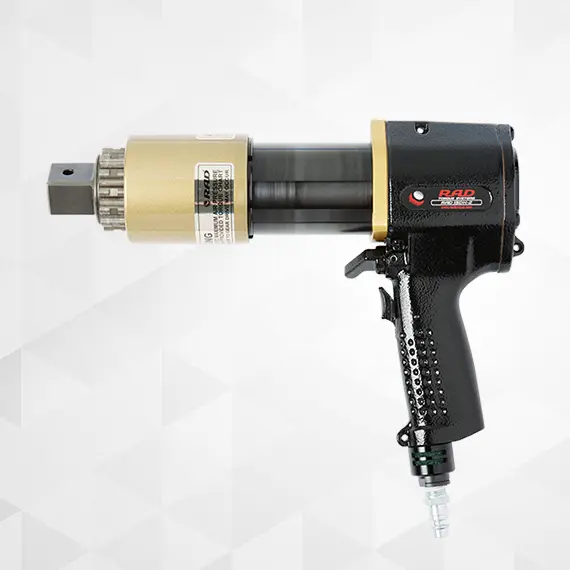

Pneumatic Adjustable Torque Wrench

Our high-speed torque wrenches offer a two-speed solution to streamline your workflow. Forget the hassle of manually switching gears – these innovative tools automatically adjust speed for efficient fastening. Choose from four models covering a torque range of 475-4,000 Nm (350-3,000 ft/lbs), making them ideal for any high-speed bolting application.

RAD High Speed Pneumatic Torque Gun Specifications


Maximum Torque (Nm) / (ft-lbs)                4000 / 3000
Minimum Torque (Nm) / (ft-lbs)                 475 / 350
Maximum Weight (kg) / (lbs)                     7.3 / 16.1
Minimum Weight (kg) / (lbs)                      4.5 / 9.9


PRODUCT CATALOGUE


ABS Pneumatic Torque Wrench - RAD High Speed



Metric

TOOL MODEL

TORQUE RANGE

RPM

RAD 14GX-2-M

475-1400 Nm

85

RAD 20DX-2-M

700-2000 Nm

50

RAD 34GX-2-M

950-3400 Nm

44

RAD 40DX-2-M

1400-4000 Nm

49

Imperial

TOOL MODEL

TORQUE RANGE

RPM

10GX-2

350-1000 ft/lbs.

85

15DX-2

500-1500 ft/lbs.

50

25GX-2

700-2500 ft/lbs.

44

30DX-2

1000-3000 ft/lbs.

49

The RAD High Speed Torque Wrench tackles jobs faster with its innovative features:

Built for Speed and Precision

  • Automatic Two-Speed Gearbox: This unique design eliminates the need to manually switch gears, saving you time and effort. Start with a high RPM for rapid rundown, then the wrench automatically shifts to a lower speed for precise tightening.
  • Reduced Work Time: Achieve faster completion of time-sensitive bolting applications with rundown speeds reaching up to 80 RPM.
  • Ergonomic Design: The lightweight, comfortable grip minimizes operator fatigue and promotes increased productivity.
  • Exceptional Control: Apply smooth, continuous torque that eliminates damaging hammering effects on fasteners, ensuring accuracy of +/- 4% on target and repeatability of +/- 2%.
  • Long-lasting Performance: RAD High Speed wrenches require minimal maintenance and deliver reliable tightening throughout your project.

Everything You Need, Ready to Go

Each RAD High Speed Torque Wrench comes with a complete kit including:

  • Reaction arm and snap ring
  • Hose and fittings
  • Tool holder with FRL unit (Filter, Regulator, Lubricator)
  • Operator's manual
  • Calibration certificate traceable to ISO 17025 standards
  • Safety instructions on a USB flash drive

Enquire Now



People Also Ask

- A pneumatic torque wrench operates on the principle of compressed air powering a motor, which drives a gear system to generate torque. The tool delivers controlled torque by adjusting the air pressure and features reaction arms to counteract the force, ensuring precision in tightening or loosening bolts.

- The limitations of a torque wrench include- Accuracy Dependency- Requires regular calibration to maintain precision. Limited Capacity- Manual torque wrenches are not suitable for very high torque requirements. User Dependency- Improper usage, such as over-tightening or misreading the scale, can lead to inaccuracies. Time-Consuming- Compared to powered tools, manual torque wrenches are slower for repetitive tasks.

- A major advantage of a pneumatic torque wrench is its ability to deliver high torque levels consistently and efficiently. It operates with minimal physical effort, offers precision for industrial applications, and has a high power-to-weight ratio, making it suitable for heavy-duty tasks.

- A basic rule is to always apply torque in a controlled and gradual manner while ensuring the wrench is set to the specified torque value for the application. Additionally, avoid using a torque wrench for loosening bolts, and regularly calibrate it to maintain accuracy.
