Pneumatic Torque Wrench - RAD Wheel Nut Bolting & OTR Mining

Inquire Now

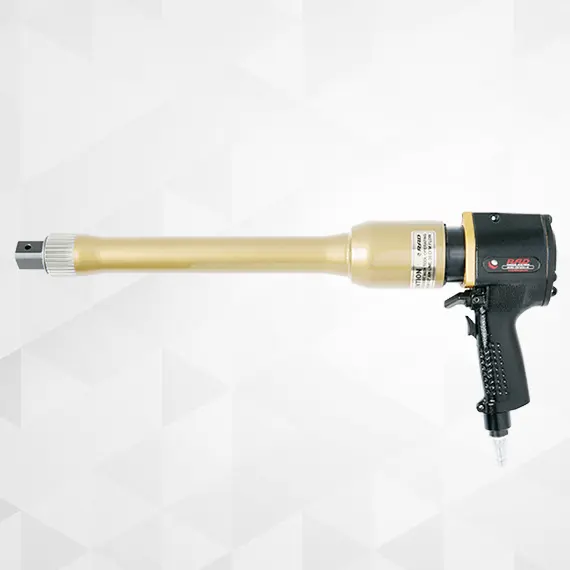

Pneumatic Torque Wrench

Pneumatic Gun For Nut Tightening

Loose wheel nuts are a serious safety hazard, causing countless accidents and injuries every year. Protect your workers and equipment with RAD wheel nut bolting tools. Our range of five torque wrenches covers a broad spectrum of tightening needs, ranging from 400-2,400 Nm (300-1,800 ft/lbs). Each tool delivers exceptional accuracy and precise torque control, ensuring your wheels stay securely fastened.

RAD Wheel Nut Bolting & OTR Mining Torque Wrench Specifications

Maximum Torque (Nm) / (ft-lbs)                2400 / 1800
Minimum Torque (Nm) / (ft-lbs)                 400 / 300
Maximum Weight (kg) / (lbs)                     12.4 / 27.5
Minimum Weight (kg) / (lbs)                      5.4 / 12

PRODUCT CATALOGUE

 ABS Pneumatic Torque Wrench - RAD Wheel Nut Bolting & OTR Mining



Metric

TOOL MODEL TORQUE RANGE RPM

RAD 10GX-R-M

400-950 Nm

115

RAD 14GX-NX-M

275-1350 Nm

20

RAD 20NDX-R-M

400-2000 Nm

10

RAD 20DX-NX-M

400-2000 Nm

10

RAD 2400NGX-R-M

700-2400 Nm

10

Imperial

TOOL MODEL TORQUE RANGE RPM

7GX-R

300-700 ft/lbs.

115

10GX-NX

200-1000 ft/lbs.

20

15NDX-R

300-1500 ft/lbs.

10

15DX-NX

300-1500 ft/lbs.

10

1800NGX-R

500-1800 ft/lbs.

10

RAD Air Torque Gun: The Secure Choice for Wheel Nut Bolting

Ensuring precise torque and eliminating vibration, RAD wheel nut bolting tools are designed to tackle even the toughest jobs.

  • Unmatched Accuracy: Prevent under or over-tightening with our high-precision wrenches, reducing the risk of accidents and ensuring optimal wheel security.
  • Versatility for Tight Spaces: Multiple configurations allow for easy operation in confined areas, thanks to extended reaction arms and various attachments.
  • Built for Off-Road Applications: The RAD system was specifically developed for the demanding world of off-the-road (OTR) mining.
    • Extreme Duty Performance: The fixed nose extension (-R) offers safe access to wheel nuts on massive haul trucks and loaders (50-400 tons).
    • Go-Anywhere Functionality: The nose extension kit (-NX) provides ultimate flexibility with three reaction arms and a dedicated extension for hard-to-reach areas, ideal for various off-road construction equipment.

Complete Tooling Package:

Every RAD Wheel Nut tool comes with everything you need to get started, including:

  • Reaction arm and snap ring
  • Hose and fittings
  • Tool holder with FRL unit (Filter, Regulator, Lubricator)
  • Operator's manual
  • Calibration certificate traceable to ISO 17025 standards
  • Safety instructions on a USB flash drive

Designed for Efficiency and Comfort:

  • Ergonomics in Mind: RAD tools feature innovative features like nose extensions to reach hidden bolts and optional tool hangers to minimize operator fatigue.
  • Maximized Productivity: Get the job done faster with RAD's efficient system, keeping downtime to a minimum.
  • Reliable Performance: Built for minimal maintenance, RAD tools ensure accurate and dependable wheel nut tightening throughout your project.

Enquire Now



People Also Ask

- A torque wrench or an impact wrench is commonly used to tighten bolts and nuts. For high-precision applications, hydraulic or pneumatic torque wrenches are preferred, while for general applications, electric or manual tools suffice.

- The best tool depends on the application: Torque Wrench: Ensures precision tightening to a specified torque. Hydraulic or Pneumatic Torque Wrench: Suitable for high-torque requirements in industrial settings.

- A torque wrench is the most accurate tool for measuring and applying the specified torque to bolts and nuts. Digital torque wrenches or torque transducers can provide even greater precision and data recording capabilities.

- The major advantage of a pneumatic torque wrench is its high power-to-weight ratio and consistent torque delivery, making it ideal for heavy-duty applications where accuracy and efficiency are critical. Additionally, it operates quietly compared to other power tools and requires minimal maintenance.

Since 1998, Advanced Bolting Solutions (ABS) has led the bolting industry with precision and innovation. Specializing in torquing (up to 72,000 Nm), tensioning (nut sizes up to 6 inches), flange management, and automation, we deliver tailored solutions for every project. Our ECITB-trained experts offer on-site machining, rentals, and globally recognized training through the ABS Training Academy.
